Stationary concrete pumps KLEIN

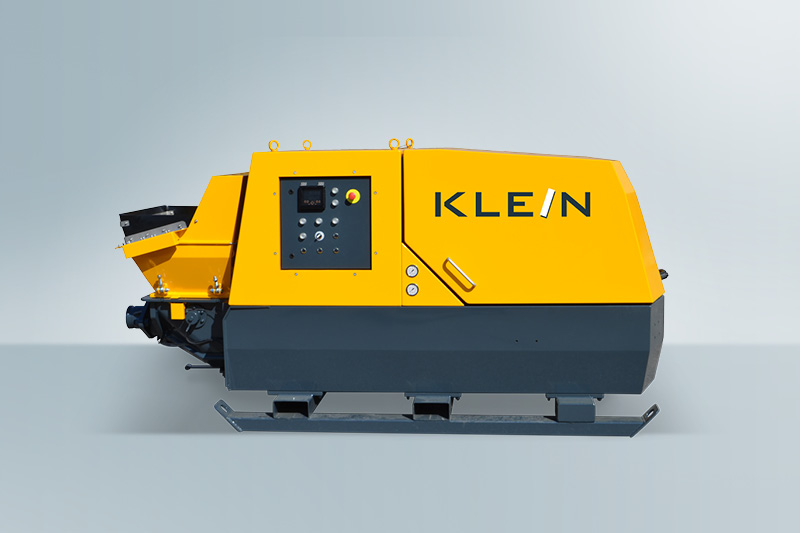

KTP 150 Series

Compact and reliable: stationary concrete pumps of the 150 series from KLEIN have everything you need for concrete work on small and medium-sized areas. The concrete pump provides optimal power for small concreting operations.
As a double-piston pump, the 150 series stationary concrete pumps transport all types of materials very reliably, even over long distances. You can pump liquids with a fraction of up to 16 mm. The innovative selection of maintenance points ensures very simple device maintenance and longer maintenance intervals. Stationary concrete pumps are available in different sizes, capacities and with different types of drive.

The maximum theoretical capacity is 0-21 m³/h
The maximum theoretical pressure of concrete is 80 bar
The volume of the concrete bunker is 300 l

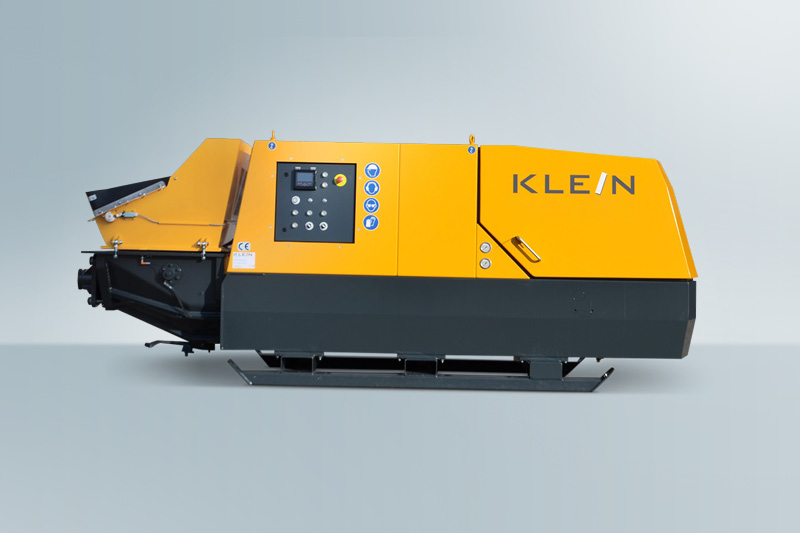

KTP 180 Series

If you need a reliable all-rounder for complex pumping jobs, the 180 series stationary concrete pumps can handle any job, big or small, thanks to their extremely strong construction.
The double piston installed in the concrete pump reliably transports concrete and other dry materials with a fraction of up to 32 mm over medium and long distances. High-quality, durable construction makes stationary concrete pumps of the 180 series ideal for difficult operating conditions. The machines are also available with an electric motor for quiet and pollution-free operation.

The maximum theoretical capacity is 0-61 m³/h
The maximum theoretical pressure of concrete is 100 bar
The volume of the concrete bunker is 400 l

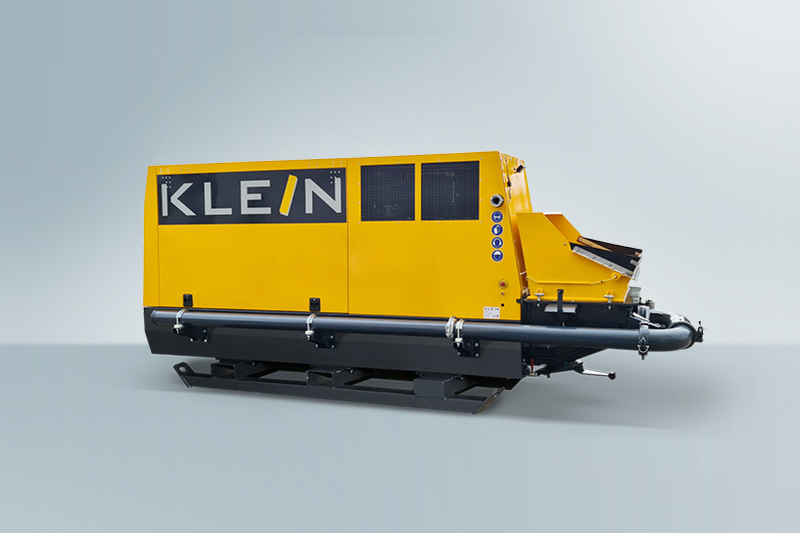

KTP 220 Series

Powerful, reliable, designed for the most demanding applications, the 220 series stationary concrete pump is characterized by high performance. A powerful two-piston pump reliably transports material from 65 to a maximum of 171 m³ per hour (depending on the device version) over long distances.
Can be built on the basis with wheels or sled. You can choose between a diesel engine or an electric motor.

The maximum theoretical production capacity is 65-145 m³/h
The maximum theoretical pressure of concrete is 64-130 bar
The volume of the concrete bunker is 500-800 liters
