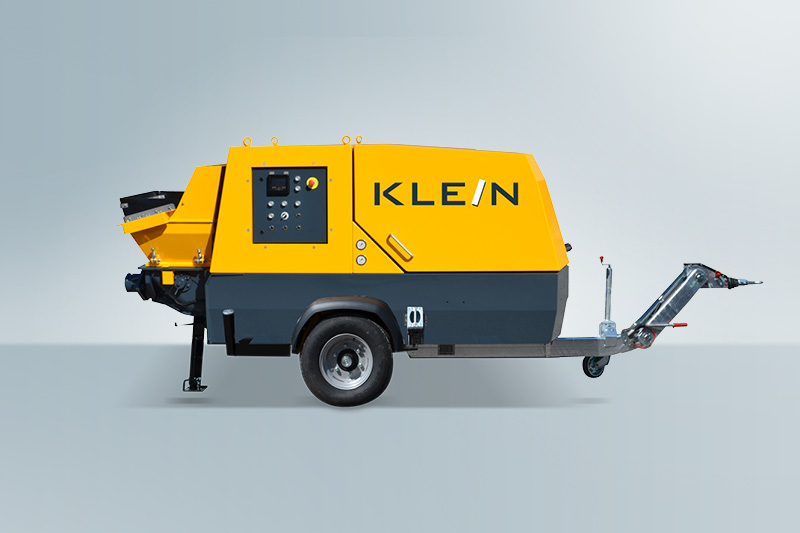

Trailer-mounted concrete pumps KLEIN

KTP 150 Series

Everything is reliably "in the flow": thanks to the double piston, the trailed concrete pump of the 150 series easily pumps concrete and liquid screed with a fraction of up to 16 mm, even over long distances. Hydraulics works absolutely reliably and impresses with a high level of efficiency. The concrete pump is available in different sizes, performance levels (max. 21 m³/h) and with different types of drive (electric, diesel).

The maximum theoretical capacity is 0-21 m³/h
The maximum theoretical supply pressure is 80 bar
The volume of the concrete bunker is 300 l

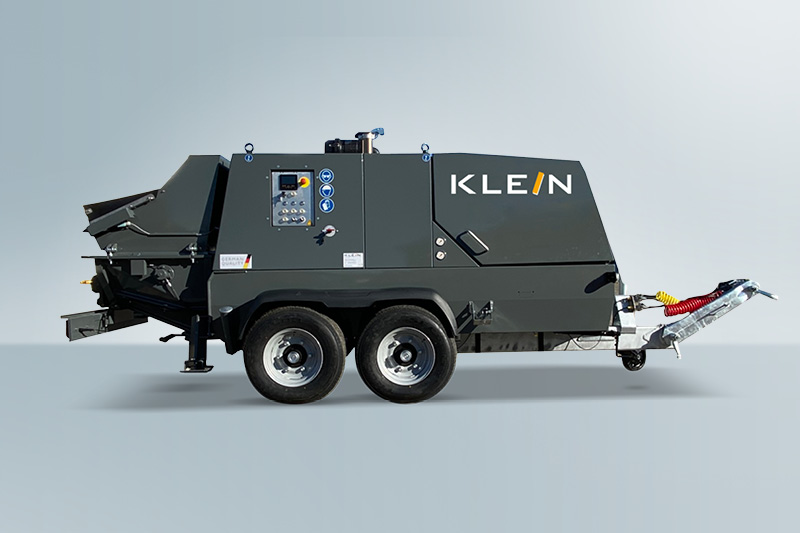

KTP 180 Series

You can trust these pumps!
The reliable design of the 180 series trailed pump ensures maximum reliability even in the most difficult conditions. The "Made in Germany" two-piston pump effortlessly pumps concrete with a fraction of up to 32 mm over long distances. Machine maintenance work can be done very quickly thanks to innovations. Trailed concrete pumps are available with electric and diesel engines.

The maximum theoretical capacity is 0-61 m³/h
The maximum theoretical supply pressure is 100 bar
The volume of the concrete bunker is 400

KTP 220 Series

Durability combined with quality and reliability: powerful twin-piston trailed pumps from Klein reliably transport pumpable liquids with a grain size of up to 32 mm, even over long distances, to their destination. The pumps are available in different performance categories, starting with a performance of 65 m³/h to 171 m³/h with a delivery pressure of up to 165 bar. The electric drive also makes the trailer pumps very quiet. The pumps are also available with a diesel engine.

The maximum theoretical capacity is 65-145 m³/h
The maximum theoretical pressure of concrete is 64-130 bar
The volume of the concrete bunker is 500-800 liters
